3m * 3m Tunnel Security X Ray Inspection System For Vehicle , Truck , Vans Check

Name: 3m 3m Tunnel Security X Ray Inspection System For Vehicle Truck Vans Check
Brand: SECU SCAN
Price: 1 USD

Quality 3m * 3m Tunnel Security X Ray Inspection System For Vehicle , Truck , Vans Check for sale

Brand Name : SECU SCAN

Model Number : AT2800

Certification : CE, ISO

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 unit/ year

Delivery Time : 90 working days

Packaging Details : Wooden packaging

Usage : For vehicle safety check

Tunnel size : 3m*3m

Application : checkpoints, customs, border, etc

Throughput : At least 100 pcs vehicle/h

Installation : Will send engineer to assist

Vehicle type : car, medium vans

Training : provide training at the local

Price : Negotiable

Contact Now

Security X ray inspection system for vehicle, truck, vans check
Model: AT2800

System Hightlights:

Gantry rail design moving the cars automatically
Equipped with a gantry rail which can move forward the cars and vehicles automatically, leaving the drivers and passengers outside the cars, zero radiation
High security protection
Track stretch design enables automatic transmission of vehicles to get scanning, maximally keep the driver and personnel away from radiation.
High pass rate, can achieve 100% inspection
High penetration
AT2800 is with 200kv(300kv optional) generator producing X-Ray from top to bottom, offering
high-quality X-ray images of inspected objects through 60 mm of steel at car speeds of 10 km/h
Dual energy imaging
AT2800 has an automatic color coding for materials separation (3 colors) feature allowing
distinguishing between organic, non-organic and metal materials. This feature helps the operator to detect dangerous object from the various materials.

Friendly interface, can integrated with LPRS and under vehicle inspection system.

Basic Spec.:

Tunnel size	16.5(L)6.5(W)5.5(H)
Scanning Speed	5-10 km/h
Typical throughput	150pcs vehicles / hour
Max. Vehicle length	20m and extendable
Penetration typical	typical 40mm(200kv),60mm(300kv)
Max. Dose to working area	<5 μSv/h
Dose rate outside	public area<0.5μSv, compliant with IAEA standard
Film Safety	Guarantee ASA/ISO1600 Film
Power consumption	Max. 2KVA

X-ray Generator (single)

X ray Accelerator	200kv (300kv optional)
X ray beam	From top to down
Cooling / Duty Cycle	Oil Cooling /100%

Radiation Safety System

X ray dose per inspection	<5.0μsv
X ray leakage	<0.5μsv, complied with international IAEA standard

Image System

Image process	Image enhancement; magnifying; brightening / darkening; image pullback / front pull image storage;
Others	Date / time display; vehicle count; user management; system working time; ray out timing; power-on self-test; image storage and retrieval; maintenance diagnosis
Fully automated scanning	no manual operation need for operator or driver
Drive-through mode	no stopping of vehicle during scanning
Stationary mode	the vehicle stays still and the scanner move through the rails and scan the vehicle automatically

Operating Environment

Operation temperature/Humidity	-15℃-55℃ / 5%-95%(non-condensing)
Storage Temperature/Humidity	-40℃to 70℃ / 5%-95%(non-condensing)
Operation Power	220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS	15mins, 30mins, 60mins etc, optional

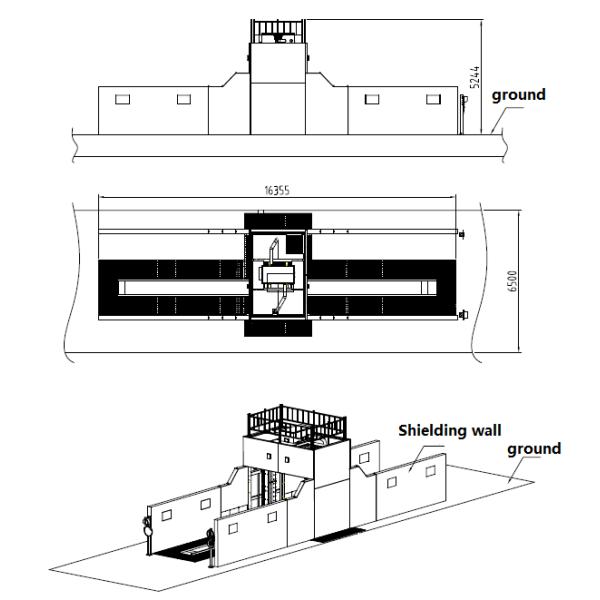

Outline drawing:

3m * 3m Tunnel Security X Ray Inspection System For Vehicle , Truck , Vans Check
